Portable Gantry Crane
Mobile Lifting Solution | Flexible Setup | Safe Operation
Globe MachMovers is a leading Portable Gantry Crane manufacturer in India, offering robust and mobile lifting solutions for industries that require temporary or flexible overhead lifting systems. Our portable gantry cranes are designed for easy mobility, quick setup, and height adjustability, making them ideal for material handling tasks in workshops, maintenance bays, loading areas, and more.
What is a Portable Gantry Crane?

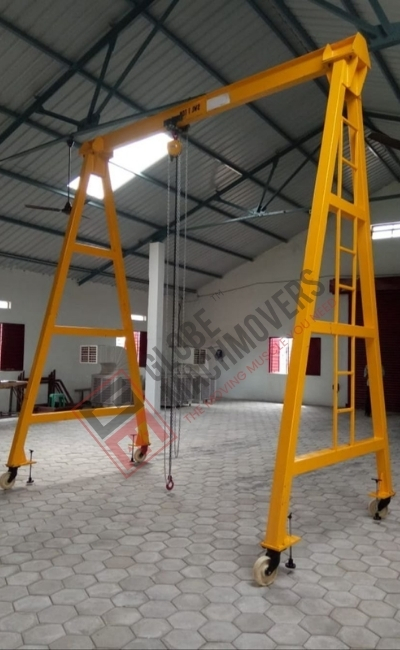

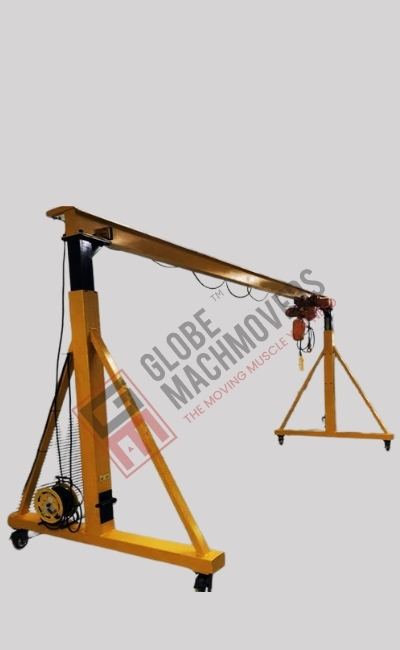

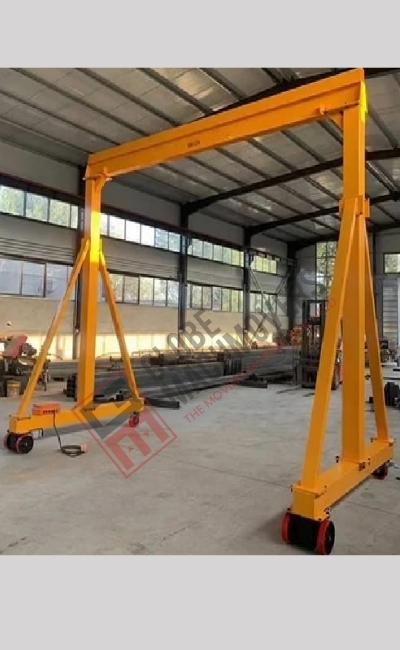

A Portable Gantry Crane is a lightweight, freestanding lifting structure equipped with a movable I-beam, adjustable height, and lockable wheels or casters. It can be used to lift loads using a manual or electric hoist and is designed for indoor or outdoor use across various industries. The modular design ensures easy assembly, disassembly, and relocation, making it a preferred choice for operations requiring versatile and quick lifting solutions.
Technical Specifications
| Crane Type | Portable Gantry Crane (Mobile / Fixed Height) |
|---|
| Capacity Range | 0.5 Ton to 10 Ton |
|---|
| Span | 2 to 8 meters (Customizable) |
|---|
| Lifting Height | Up to 6 meters (adjustable/fixed options) |
|---|
| Height Adjustment | Manual / Pin Locking System / Mechanical Screw / Hydraulic (optional) |
|---|
| Structure Material | MS Steel IS Standard – Heavy Duty I-Beam / Box Beam / Fabricated Sections |
|---|
| Leg Type | A-Frame or Straight Frame with Base Plates or Casters |
|---|
| Mobility | PU / Nylon Swivel Castor Wheels with Brakes |
|---|
| Beam Type | I-Beam / Box Beam |
|---|
| Movement Type | Manual Push-Pull / Motorized (optional) |
|---|
| Hoist Compatibility | Manual Chain Hoist / Electric Chain or Wire Rope Hoist |
|---|
| Finish | Industrial Grade Primer + Top Coat / Powder Coated |
|---|
| Disassembly | Fully Collapsible / Knockdown Type for Easy Transport & Storage |
|---|
| Power Supply | NA (Manual Gantry) / 3 Phase, 415V AC for Powered Version |
|---|
| Control Type | Manual / Pendant / Remote (for powered movement or lifting) |
|---|
| Brake Type | Manual Lock on Wheels / Wheel Brakes / Hoist Brake (if motorized) |
|---|
| Safety Features | Wheel Locks, Load Stoppers, Height Lock Pins, Overload Protection (optional) |
|---|
| Standards Compliance | IS 3177 / IS 807 / ANSI / OSHA Guidelines |
|---|
| Applications | Workshops, Maintenance Bays, Warehouses, Loading Bays, HVAC Installation, Sites |
|---|
Key Features
- Load Capacity: 500 kg to 10,000 kg (customizable)
- Span Length: Up to 8 meters
- Height Adjustment: Manual or hydraulic telescopic adjustment
- Mobility: Swivel castor wheels with locking mechanism
- Beam: I-beam or box girder compatible with hoists
- Material: Heavy-duty MS with powder-coated or galvanized finish
- Operation: Compatible with manual chain hoist or electric wire rope hoist
- Assembly: Tool-free assembly for easy transportation and storage
Applications
- Maintenance and repair in industrial units
- Equipment lifting in workshops and job sites
- Loading/unloading of goods in logistics centers
- Temporary lifting during machine installations
- Mold and die handling in tool rooms
- Construction and fabrication yards
Industries We Serve
- Automotive & Engineering
- Manufacturing & Fabrication
- Warehousing & Logistics
- Aerospace & Defense
- Construction & Utilities
- Tool Rooms & Workshops
Benefits of Globe MachMovers’ Portable Gantry Cranes
Our Portable Gantry Cranes offer flexible use with the ability to move, reassemble, and reuse in different locations, an adjustable design with customizable height and span for varied applications, easy installation without the need for permanent foundation or structural support, cost-effective lifting solutions for temporary or space-restricted setups, and safe handling with robust locking and brake mechanisms.
Why Choose Portable Gantry Cranes from Globe MachMovers?
- Trusted Portable Gantry Crane manufacturer in India
- Engineered to meet IS/ISO lifting standards
- Superior quality with heavy-duty construction
- Customized designs as per your site and load requirements
- Pan-India delivery and responsive after-sales support
Need a mobile and easy-to-deploy lifting solution?
Get in touch with Globe MachMovers, your reliable Portable Gantry Crane supplier in India, and enhance your facility’s lifting operations with flexibility and strength.
Optimize your material handling with our robust and versatile gantry cranes.
